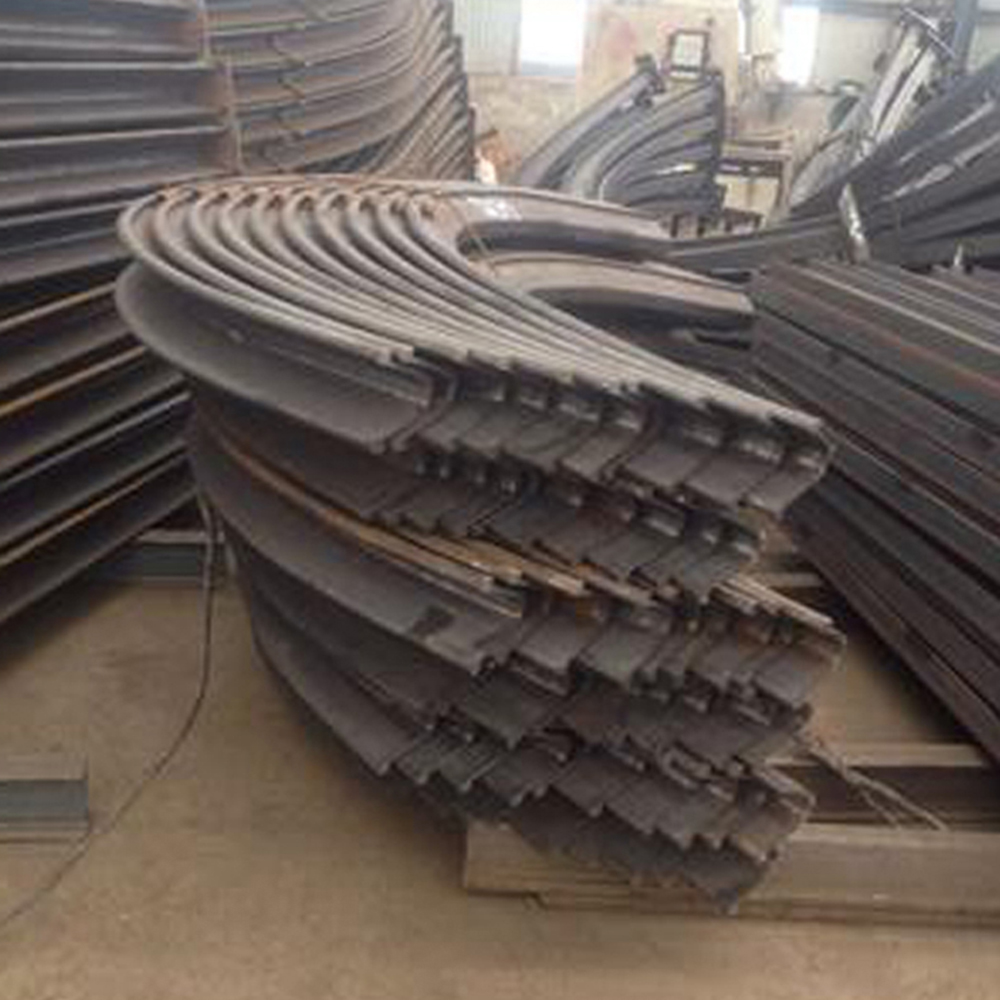

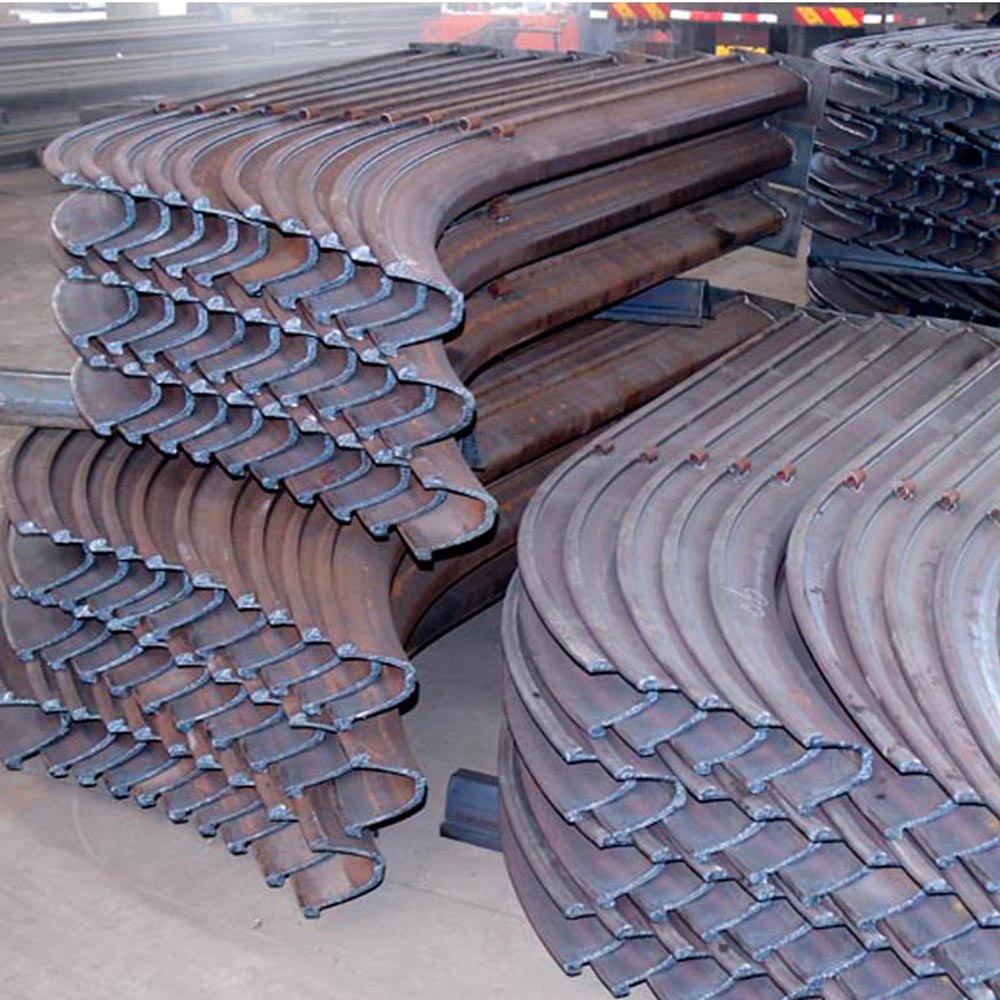

The fundamental strength of a U-shaped steel Support Arch lies in its exceptional ability to transform point loads into distributed forces. When ground pressure is applied, the unique geometry of the "U" section prevents stress concentration at any single point. Instead, the load is channeled along the curve of the arch and down into the sidewalls, creating a highly efficient structural system for underground roof support. This principle is critical for reliable mine roof support in unstable strata.
This load-distributing characteristic is what allows the Support Arch to withstand the immense and often uneven pressures found deep underground. The continuous beam formed by connecting multiple segments ensures that no single arch bears the burden alone. The entire structure works in concert, a feature that is paramount for effective underground roof support in challenging geological conditions, where rock movement is a constant threat.
The design inherently promotes stability by actively engaging the surrounding rock mass. As the ground settles, the U-shaped steel Support Arch maintains contact and provides a constant resisting force, helping to create a stable pressure ring around the excavation. This interaction between the support and the geology is a cornerstone of modern mine roof support theory, moving beyond passive propping to active ground control.
In conclusion, the U-shaped steel system is a masterclass in structural engineering applied to a harsh environment. Its effectiveness is not merely a product of its material strength, but of its intelligent shape that masters the science of load distribution. This makes it an indispensable and scientifically-backed solution for robust underground roof support in the most demanding mining applications.
