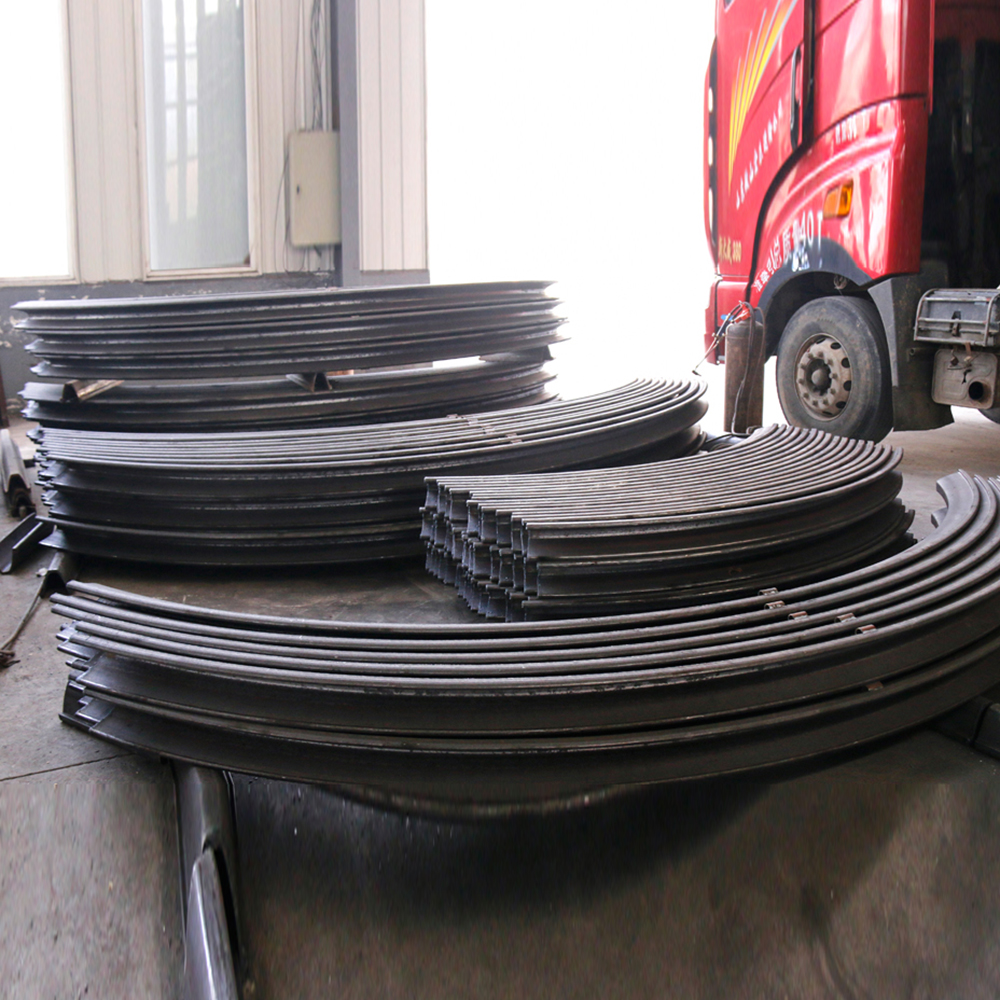

The primary function of any Support Arch is to provide reliable underground roof support by creating a stable protective shell. The U-shaped steel profile achieves this not merely through brute strength, but through a principle of passive resistance. Its inherent stiffness resists deformation, creating a predefined safe zone that controls the rock mass and prevents loose material from collapsing into the working area. This establishes the fundamental basis for secure mine roof support.

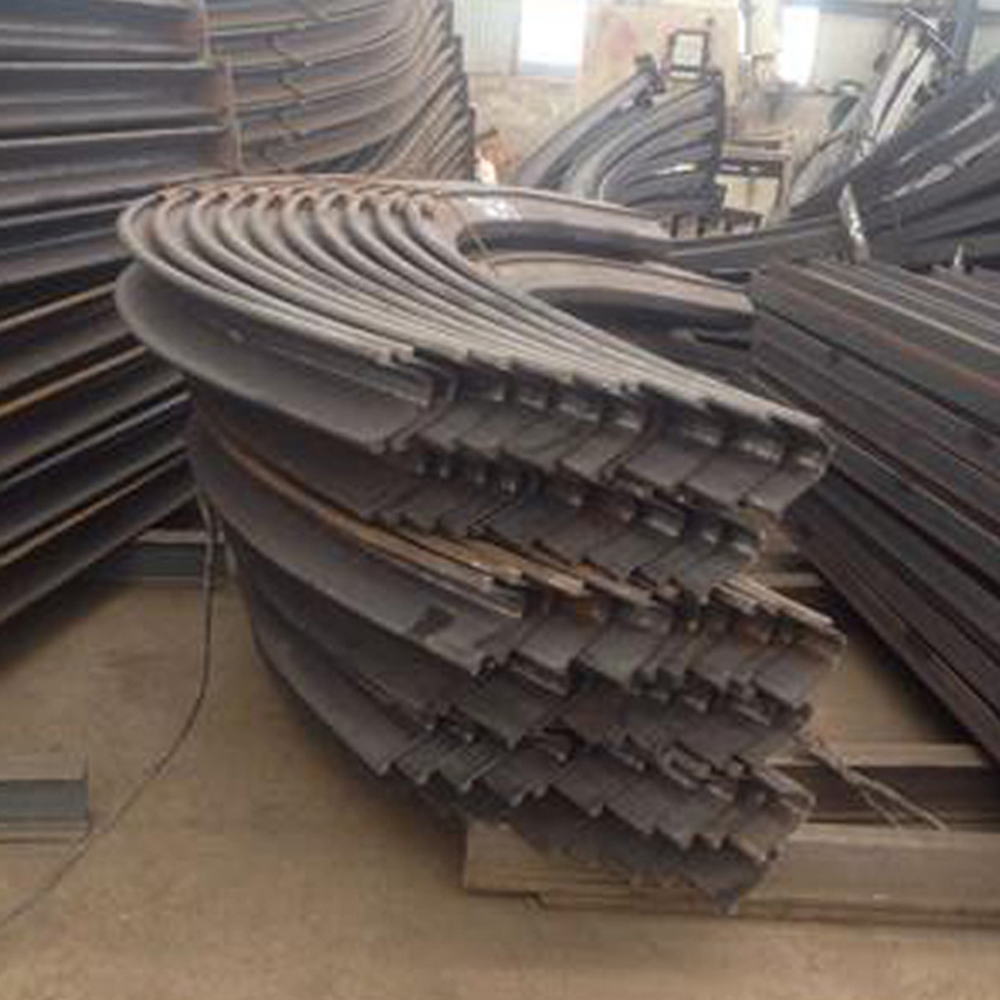

This passive resistance is a product of both the material and the form. The high-yield strength steel provides the fundamental capacity to bear loads, while the U-shaped geometry offers an optimal balance between weight, handling, and structural integrity. When assembled, the interconnected segments form a continuous Support Arch that uniformly transfers ground pressures down to the stable floor, a critical mechanism for effective underground roof support.
The predictability of this system is one of its greatest assets. Engineers can accurately calculate the load-bearing capacity of a U-shaped steel Support Arch, allowing for precise design based on geological surveys. This predictability is crucial for planning long-term excavations, as it provides a known and reliable factor of safety, forming the backbone of a sound mine roof support strategy.
Ultimately, the widespread use of the U-shaped steel system is a testament to the effectiveness of passive resistance in ground control. It provides a robust, predictable, and durable framework that manages the static and dynamic loads encountered underground. As a proven method for underground roof support, the passive Support Arch remains a fundamental component in ensuring the stability and safety of mining operations worldwide.
